Reydisp Manager

The PC operating program Reydisp Manager is the user interface tool to configure Reyrolle devices. It has an intuitive interface for easy management of the user files to fully configure these flexible devices, including application function selection, user HMI screens (7SR5), graphical logic, user curves, parameter setting and data communication interfaces. In order to perform IEC 6185 system engineering, you will also need an IEC 61850 system configurator.

Enquiry about Reydisp Manager

DESCRIPTION

Basic Features

  • Compatible with Microsoft Windows 7 and 10

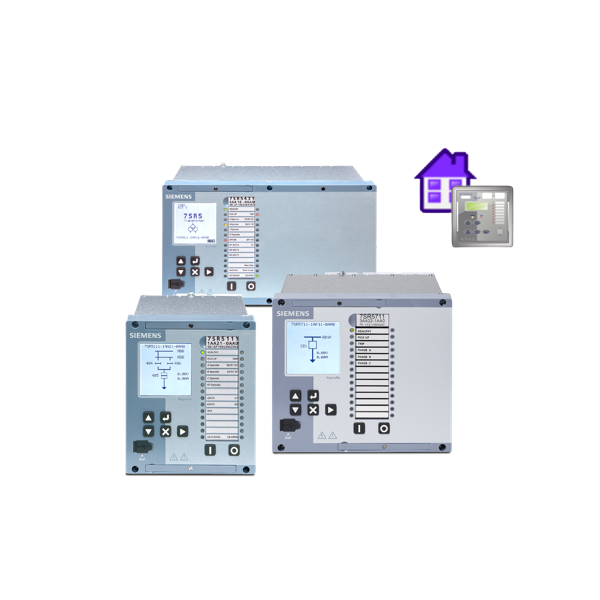

  • Provides window-based suite of software tools, making the Reyrolle 7SR devices fully configurable (except Reyrolle 7SR45)
  • Application function configuration
  • Device parameter setting
  • Create and edit logic diagrams
  • Configure ethernet interface and time zone
  • Firmware upload
  • Secure configuration upload
  • Serial communication and event editor
  • Curve creation and editing
  • User screen creation (7SR5 only)
  • Language editor (7SR1 & 2)
  • Device template management
  • Device data access (7SR5 only)
